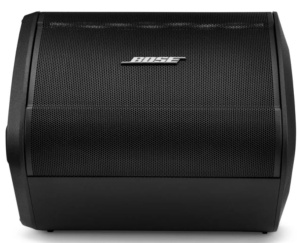

S1 Pro+ Monitor Mode

When using your S1 Pro+ as a stage monitor on the floor in front of you:

The dispersion is
- Horizontal 50 degrees
- Vertical 120 Degrees
The EQ is automatically adjusted for best performance on the floor as a stage monitor

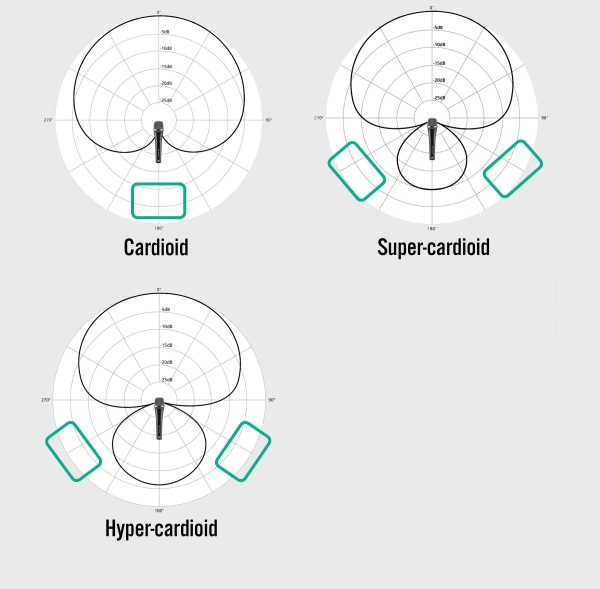

Please position the S1 Pro system so that it avoids the polar pattern (pickup area) of your type of microphone.

Place the S1 Pro+ anywhere behind the microphone (including directly behind the microphone)

Avoid placing the placing the S1 Pro+ directly behind the microphone. Put in the null points off-center as shown above

Avoid placing the placing the S1 Pro+ directly behind the microphone. Put in the null points off-center as shown above
