T8S ToneMatch Mixer to T8S ToneMatch Mixer

First T8S

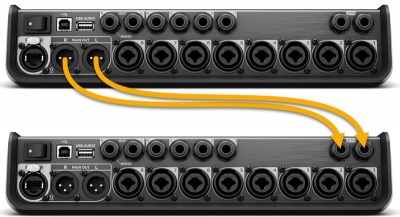

Connect the left and right outputs of the first T8S to the Aux Inputs 9/10 of the second T8S.

• Use balanced cables

1/4 inch (6.3 mm) Tip-Ring-Sleeve

OR

XLR to 1/4 inch (6.3 mm) Tip-Ring-Sleeve

• Set the Master Output to 10:00 o'clock

Second T8S

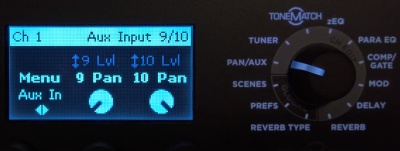

• On Aux Input 9/10, set the pan (9) left, (10) right.


• On Aux Input 9/10 set levels to 100%


Connect the left and right outputs of the second T8S to your existing powered loudspeakers.

---
