T1® Stereo Sources

From Bose Portable PA Encyclopedia
Jump to: navigation, search

To connect a stereo source to a T1 ToneMatch Audio Engine see: Backing Tracks

Connect a stereo source to the T1


Warning about Cables


If you use a cable like this to connect a stereo source to the T1 ToneMatch Audio Engine

  • In Channels 1,2,3 you will hear only one side of the stereo source
  • In Channels 4 or 5 the left and right channels from the source will tend to cancel each other out and you will get little or no output.





Corrections to the T1® Owners Guide pages 38 and 40

From the original diagrams it looks like this kind of cable may work.


Correction - use a cable like this connected to T1 ToneMatch Audio Engine Channels 4/5

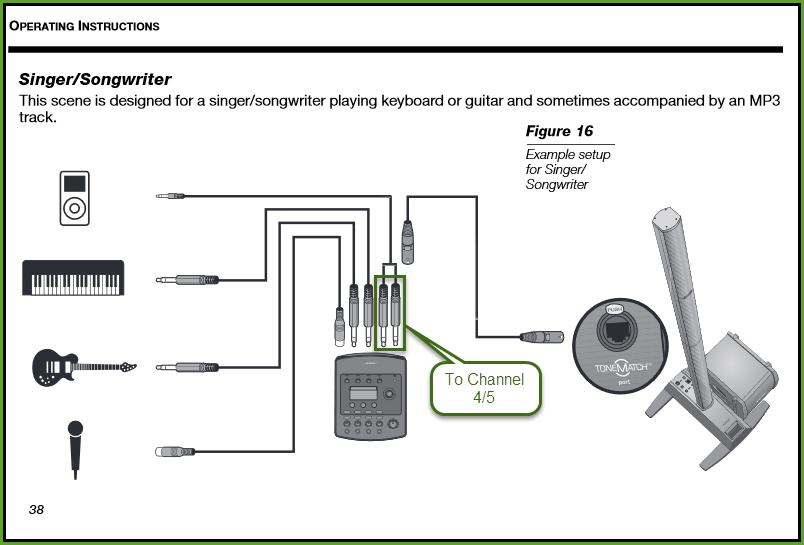

Original page (red x indicates error)


Correction - use a cable like this connected to T1 ToneMatch Audio Engine Channels 4/5



Original page (red x indicates error)


Correction - use a cable like this connected to T1 ToneMatch Audio Engine Channels 4/5
